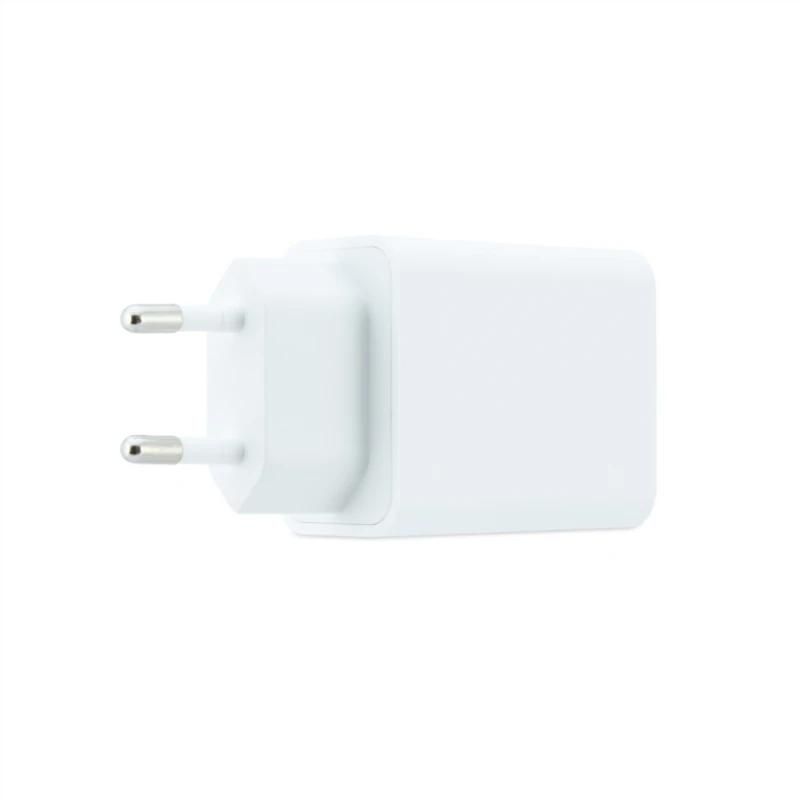

TQWC-GANQCPD45WT GaN USB-C PD + USB-A QC wall charger white
12,90 €
VAT included · Delivery to mainland Spain and the Balearic Islands
Shipping: 6,05 €
Typical transit after dispatch: 24 h to mainland Spain and 48 h to the Balearic Islands. Estimate depends on destination and availability.
In stock
Total including shipping: 18,95 € · Free shipping from 301,00 €
Tooq wall charger with GaN technology, two USB-C Power Delivery outputs and one USB-A Quick Charge output. Universal 100-240V input. For devices compatible with the listed profiles.
About this product
The Tooq TQWC-GANQCPD45WT is a wall charger built with GaN (gallium nitride) technology, which the manufacturer states provides more efficient power delivery and allows the charger size to be reduced. It has two USB-C outputs and one USB-A output. Each USB-C output supports 5V/3A, 9V/3A, 12V/3A, 15V/3A and 20V/3.25A; the USB-A output supports 5V/3A, 5V/4.5A, 9V/3A and 12V/3A. When several outputs are used at once, power is shared: USB-C1 + USB-C2 provides 45W + 20W, USB-C1 + USB-A provides 45W + 18W, USB-C2 + USB-A provides 5V/3A (15W), and with all three outputs active it provides 45W + 15W. The input is universal 100-240V at 50/60Hz, 1.5A. It holds EMC, LVD, ROHS and ERP6 certifications. It is white, weighs 0.128 kg net and measures 51 x 23 x 93 mm. It suits devices compatible with the listed USB-C PD or USB-A profiles; check that your device accepts them.
What can you use it for?
- Charge a device compatible with USB-C Power Delivery using one of the two USB-C outputs, which support up to 20V/3.25A.
- Charge a USB-A device using the USB-A output, which supports 5V/3A, 5V/4.5A, 9V/3A and 12V/3A.
- Use the charger on power networks in different countries thanks to its universal 100-240V, 50/60Hz input.
Its strengths
- According to the manufacturer, GaN construction provides more efficient power delivery and reduces charger size.
- Includes two USB-C outputs and one USB-A output, with specified power sharing for simultaneous use.
- Holds EMC, LVD, ROHS and ERP6 certifications.
Things to consider before buying
- When several outputs are used at once, power is shared according to the listed combinations (for example, USB-C1 + USB-C2: 45W + 20W).
- It is not specified whether a cable is included; confirm this before buying.
Product questions
What outputs and charging profiles does this charger offer?
It has two USB-C outputs, each with 5V/3A, 9V/3A, 12V/3A, 15V/3A and 20V/3.25A, and one USB-A output with 5V/3A, 5V/4.5A, 9V/3A and 12V/3A. When several outputs are used at once, power is shared according to the manufacturer's listed combinations.
How is power shared if I connect several devices?
According to the manufacturer's data: USB-C1 + USB-C2 provides 45W + 20W; USB-C1 + USB-A provides 45W + 18W; USB-C2 + USB-A provides 5V/3A (15W); and with all three outputs active it provides 45W + 15W.
Can I use it in other countries?
Yes, its input is 100-240V at 50/60Hz, 1.5A, so it suits different power networks. If the plug type does not match, you will need a suitable plug adapter.
ALMC analysis prepared with AI assistance using the supplier’s product information. It is not a product test or a customer review. Check the specifications and confirm the compatibility you need.
Technical specifications
| Marca | Tooq |
| Modelo | TQWC-GANQCPD45WT |
| Características | - La fabricación con GaN (Nitruro de Galio): Suministro de corriente más eficiente disminuyendo las altas temperaturas que soportan los dispositivos. Esta tecnología proporciona la ventaja de poder reducir el tamaño de los cargadores. - Entrada: 100-240V 50/60Hz 1.5A - Salida USB-C1: 5V/3A 9V/3A 12V/3A 15V/3A 20V/3.25A Salida USB-C2: 5V/3A 9V/3A 12V/3A 15V/3A 20V/3.25A - Salida USB-A: 5V/3A 5V/4.5A 9V/3A 12V/3A USB-C1+USB-C2: 45W+20W USB-C1+USB-A: 45W+18W USB-C2+USB-A: 5V/3A 15W USB-C1+USB-C2+USB-A: 45W+15W - Certificación: EMC, LVD, ROHS Y ERP6 - Color: Blanco - Peso neto: 0,128 kg - Peso bruto: 0,151 kg - Medidas del producto: 51 x 23 x 93 mm |
| Fecha de revisión | 01-02-2023 por RTY |
Product identifiers
| Reference | AATCAT0346 |
|---|---|
| EAN | 8433281012578 |
| Part number | TQWC-GANQCPD45WT |
| Manufacturer | TooQ |
