DB1127TN-B desk mount for 17-27" monitor/TV, black
23,75 €
VAT included · Delivery to mainland Spain and the Balearic Islands
Shipping: 6,05 €
Typical transit after dispatch: 24 h to mainland Spain and 48 h to the Balearic Islands. Estimate depends on destination and availability.
In stock
Total including shipping: 29,80 € · Free shipping from 301,00 €
The TooQ DB1127TN-B is a desk mount for 17-27 inch screens with VESA 75x75 or 100x100 mounting and up to 6 kg screen weight. It allows manual height adjustment and tilt, swivel and rotation.
About this product

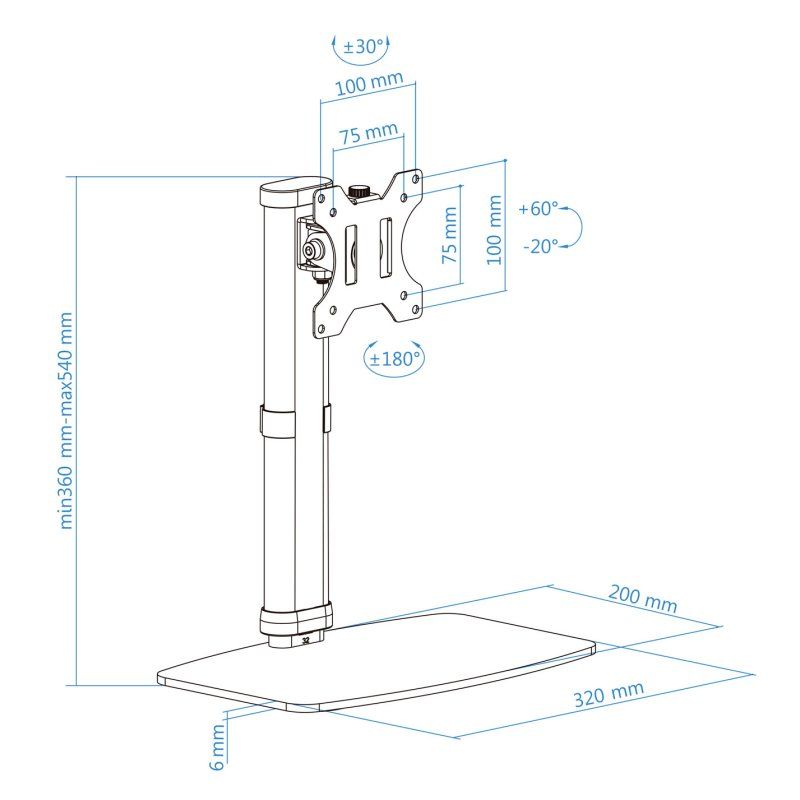

The TooQ DB1127TN-B is a desk mount designed for 17 to 27 inch screens. It is compatible with VESA 75x75 and 100x100 standards and supports a maximum screen weight of 6 kg. Height adjustment is manual and covers a range of 360 to 540 mm, allowing the vertical position to be set according to the desk setup. Tilt ranges from +60° to -20°, swivel from +30° to -30° and rotation from +180° to -180°, making it possible to angle the screen towards the user or switch between landscape and portrait orientation. It is made from high-strength materials and is compatible with curved screens. The base measures 320 x 200 mm and the unit has a net weight of 4.10 kg. It comes in black and includes the mount, a mounting kit with tools and an installation manual.
What can you use it for?
- Mount a 17-27 inch monitor on a desk and adjust its height manually between 360 and 540 mm to align the screen with your working posture.
- Angle the screen using tilt, swivel and rotation to switch between landscape and portrait or direct it towards the user.
- Install a curved screen that is compatible with VESA 75x75 or 100x100 and weighs up to 6 kg.
Its strengths
- Compatible with the two most common VESA standards for small and medium screens: 75x75 and 100x100.
- Allows manual height adjustment over a wide range, from 360 to 540 mm.
- Includes a mounting kit with tools and an installation manual.
Things to consider before buying
- The maximum supported screen weight is 6 kg, so check the weight of your monitor or TV before buying.
- Height adjustment is manual, not gas or spring assisted.
Product questions
What screen sizes does the TooQ DB1127TN-B support?
It supports screens from 17 to 27 inches, provided they are compatible with the stated VESA mounts and do not exceed the maximum supported weight.
Is it compatible with my monitor?
Two conditions must be met: the VESA mounting pattern must be 75x75 or 100x100, and the weight must not exceed 6 kg. Check both details in your screen's specifications or manual before buying.
What is included in the box?
It includes one mount, a mounting kit with tools and an installation manual.
ALMC analysis prepared with AI assistance using the supplier’s product information. It is not a product test or a customer review. Check the specifications and confirm the compatibility you need.
Technical specifications
- VESA: 75 x 75 y 100 x 100
- Peso máximo soportado de pantalla: 6 kg
- Regulación de altura de forma manual
- Fabricado en materiales de alta resistencia
| Marca | Tooq |
| Modelo | DB1127TN-B |
| Uso | - Soporte TV/Monitor |
| Caracteristicas | - Pantallas soportadas: 17"- 27" - Compatible con VESA: 75 x 75 y 100 x 100 - Peso máximo soportado de pantalla: 6 kg - Regulación de altura de forma manual - Ángulo de inclinación: +60°/-20° - Ángulo de giro: +30°/-30° - Ángulo de rotación: +180°/-180° - Rango de ajuste para la altura del soporte: 360-540 mm - Medidas de la peana: 320 x 200 mm - Compatible con pantallas curvas - Color: Negro - Peso neto: 4,10 kg. Peso bruto: 4,60 kg - Medidas del embalaje: 355 x 212 x 75 mm Contenido - 1 x Soporte - 1 x Kit montaje (incluye herramientas) - 1 x Manual de instalación |
| Fecha de revisión | 11-05-2020 por MSB |
Product identifiers
| Reference | AISATV0261 |
|---|---|
| EAN | 8433281009721 |
| Part number | DB1127TN-B |
| Manufacturer | TooQ |
